English Arcade Game Manual for Pachislo Yamasa from Stealth Home Amusement. Includes parts list, illustrated diagrams, cabinet description, error message table, and troubleshooting faq. From Stealth Home Amusement, 1150 University Ave., Rochester, NY 14607. Yamasa Pachislo User Manual - Free download as PDF File (.pdf), Text File (.txt) or read online for free. Manual For Yamasa Pachislo style slot machines.
| ||||||||||||||||||
|
| |||||||||||||||||
|
AUTOSLOT
AutoSlot Main Page
TheAUTOSLOTAuto Stop enables your Pachislo Skill Stop machine toperform more like traditional Las Vegas slot machines.
After inserting credits, andpressing the Start/Spin lever, the Auto Stop willautomatically stop the reels.
No longer any need to press thestop buttons!
We believethe AUTOSLOT Auto Stop is the best value of any unit currently on themarket!
Ourunitfits practically every Pachislo machine made in the last 15years!
SimpleInstallation, No soldering! Simply replace one cable with the
AUTOSLOT Auto Stop cable.Allsettings adjustable by using the 3 existing reel stop buttons on yourmachine.
Youcanselect Auto Stop mode ON or OFF.
Theorder in which the reels stop is selectable between traditional left toright order, or random order.
Youcancontrol both how long until the reels begin to stop* and how much timebetween each reel stop.
Allsettings are retained after machine is turned off! No need toselect each setting every time the slot machine is powered up.
(Ask the competitors if theirs does this!)Includes label with function summary.
Howdo I change the settings?
(Note:buttons must be held down for 2 ormore seconds.)
Referto the chart below. To turn ON theAuto Stopmode, press down the left reel stop button while the reels arestopped. To turn it OFF, simply press down the left buttonagain.
Normally,the reels will stop in a Left to Right order. To have thereels stop in a Randomorder, press down the centerbutton. The microcontroller uses a Random Number generator tochange the stop order on each spin. Press down the centerbutton again to switch back to Left to Right.
Oncethe spin lever is pushed, the default time that all the reels spinbefore the first one stops is 2 seconds. You can adjust this
Thedefault time between one reel stopping and the next is ½second. This Reel-ReelDelaytime can be changed to 1 second by pressing down the left and rightbuttons at the same time. Press down these buttons again toswitch the machine back to ½ second delay.
Youcan Restore theDefaultsettings (Auto Stop On; Random Off; 2 sec Spin-Stop Delay; 1 secondReel-Reel Stop Delay) by pressing down all three buttons at the sametime.
Pachislo Slot Machine Repair Manual
whenbutton(s) held for over 2 seconds
●
ToggleAuto Stop Mode On/Off
●
ToggleRandom Mode On/Off
●
●
DecreaseSpin-Stop Delay by ½ sec

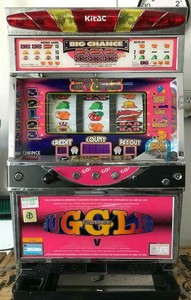

Japanese Pachislo Slot Machine Owners Manual
●
●
IncreaseSpin-Stop Delay by ½ sec
●
●
ToggleReel-Reel Delay between ½ and 1 sec
●
●
●
RestoreDefaults
Howdoes it work?
The AUTOSLOTuses a state-of-the-art microcontroller to control themachine’s stop function. It uses themachine’s reel stop buttons as inputs. By pressingdown the buttons for 2 or more seconds, you tell the microcontrollerhow you want the machine to stop the reels. Themicrocontroller stores these settings in EEPROM memory, that willretain the settings for up to 40 years with the power off! Nobattery backup needed. You can change the settings any timeyou want.
Howwill I know if this will work in my machine?
Openthe front door and locate the stop board in your machine. (Location varies, but the stop board is usually located towards theback right of your machine.) |
Ifyour board looks like one of these two pictured below, then no problem!
However,if your stop board looks like this next picture, then you have an OLDmachine,
andthe AUTOSLOT WILL NOT WORK!
Also starting in 2004 Pachislo's wereupgraded which removed these Traditional 30 Pin Stop Boards. If youhave a 2004 or newer Pachislo and have the Newer Stop Boards shownBelowthe Standard AutoSlot will not work. The AS-06 will be required andmust be wired directly into the wiring of the inner door PC Board.
Howdo I install it?
Unplugmachine from the outlet. Open the machine door. Locate the stop board and remove the 30 conductor cable by pressingdown on the two cable release levers. (Do not disconnect theother end of the cable from the motherboard). Plug the end ofyour existing cable into the AUTOSLOTAuto Stop cable and the other end of the AUTOSLOTAuto Stop cable into the connector on your stop board, making sure thelevers latch back into place. Close the door, turn on thepower and you are ready to go!
*Note:The AUTOSLOTAuto Stop is designed to work with the majority of current modelPachislo machines. However, there are a few models that usenon-standard wiring. On these models the Auto Stop functionstill works, but you lose the ability to adjust the Spin-Stop delay.
